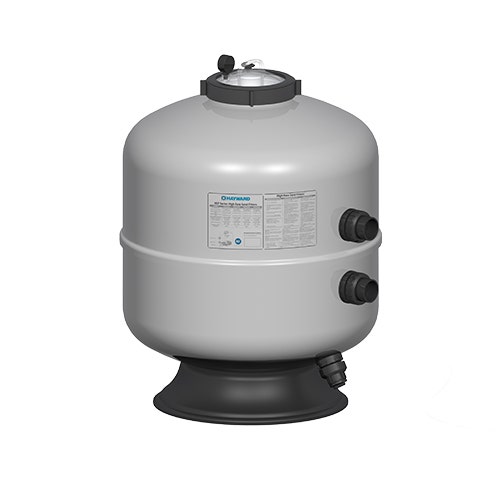

HCF Series 30" Laminated Sand Filter

Hayward

SKU: HCF230C

The HCF Series Sand Filter is engineered to stand the test of time. An optimized internal and external design improves filter cycle times, accuracy, install times and reduces maintenance while increasing durability against compromising elements.

Features

The HCF Series Filters feature an improved internal and external design that enhances performance and endurance. The filters distribute water more evenly with a multi-diffuser configuration, increasing filter cycles, effectiveness, and longevity of the filter. Installation and maintenance are easier than ever before. A transparent manway simplifies operation and the UV-protected and infusion molded fiberglass shell reduces corrosion and shields the unit from the elements, such as blooming and biofilm build up.

• Multi-diffuser distribution heads and oversized laterals improve filtration and lengthen filter cycle
• UV-protected gel coat protects from the elements
• High performance filtration and longer service life
• Transparent manway design simplifies operation
• Dual-Head (HCF230) or Quad-Head (HCF234 and HCF236) Diffusers provide optimized water distribution
• Commercial-grade PVC and ABS injection-molded internals with 360° slotted lateral provide high performance and resistance in corrosive applications
• Industrial valve and pressure gauge configuration offer durability and increased accuracy
• 34″ model fits through standard 36″ doorways with no need to remove the door frame, simplifying replacement installations
• NSF/ANSI Standard 50 Certified
  • EXPERT LINE products can only be purchased through you local pool professional or in-store.
  • 3+ Year Parts and Labor Warranties*

*When sold by a Totally Hayward® partner. Exclusions, other terms and conditions may apply.

Backwash Flow Rate 378.541
Brand Hayward
Cartridge No
Channel Expert Line
Effective Filtration Area 4.9 SQFT
Filter Type Sand
GTIN 610377404105
Labor Warranty None
Master Carton Qty 1
Number of Filter Elements N/A
Parts Warranty 5-year
Pool Type Commercial
Pressure Gauge Yes
Product Dimensions 43.5 " x 31.5 " x 31.5 "
Public Design Flow Rate 378.541
Sand Capacity 600 lbs
Series Filters HCF
Shipping Dimensions 45.2 " x 38.2 " x 38.2 "
Shipping Height 45.2 in
Shipping Length 38.2 in
Shipping Weight 140 lb
Shipping Width 38.2 in
Tank Type GCF
Valve Included Not Included
