ProSeries 27" Sand Filter - Top Mount
Hayward
SKU: W3S270T2
Pro-Series™ filters are performance matched with our above-ground pump series to ensure a system that maximizes its filtration ability.
Features
ProSeries high-rate sand filters are molded of durable, corrosion-proof material for long-lasting performance. They feature attractive, unitized tank construction for years of trouble-free operation with only minimal care. ProSeries sets the standard for performance, value and dependability.
Features and Benefits
- Flange clamp design allows 360° rotation of valve to simplify plumbing
- Integral top diffuser ensures even distribution of water over the top of the sand media bed. Full-size internal piping provides smooth, free-flowing performance
- Large pressure sand/water drain for rapid winterizing or servicing
- Unitized, corrosion-proof filter tank molded of rugged, colorfast polymeric material for dependable, all-weather performance

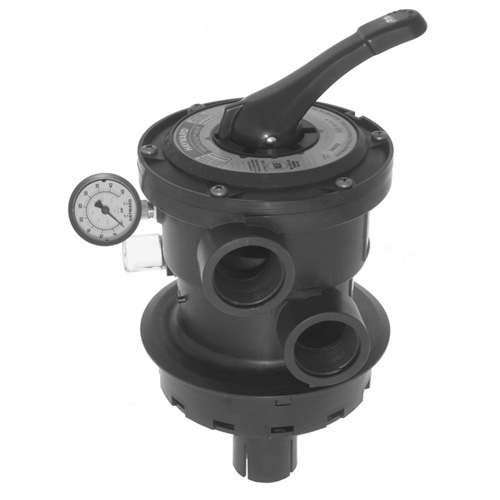

- 6- or 7-position Hayward® 2" VariFlo® control valve with easy-to-use lever-action handle lets you dial any of the valve/filter functions. Integral sight glass lets you see when backwash cycle is completed
- Precision engineered umbrella-fold self cleaning laterals for balanced flow and backwashing, plus easy serviceability
| Application | New Construction, Renovation, Aftermarket |
|---|---|
| Backwash Flow Rate | 280.1203 LPM |
| Brand | Hayward |
| Cartridge | No |
| Channel | Open Line |
| Design Flow Rate | 74 |
| Effective Filtration Area | 3.7 ft.² |
| Filter Type | Sand |
| GTIN | 610377387781 |
| Labor Warranty | None |
| Master Carton Qty | 1 |
| Number of Filter Elements | N/A |
| Pallet Qty | 8 |
| Parts Warranty | 1-year |
| Pool Type | In Ground |
| Pressure Gauge | Yes |
| Product Dimensions | 43 " x 27.5 " x 27.5 " |
| Public Design Flow Rate | 280.1203 LPM |
| Sand Capacity | 350 lbs. |
| Series Filters | ProSeries |
| Shipping Dimensions | 44.9 " x 27.8 " x 27.8 " |
| Shipping Height | 44.9 in |
| Shipping Length | 27.8 in |
| Shipping Weight | 64 lb |
| Shipping Width | 27.8 in |
| Tank Type | Polymeric Resin |
| Turnover - 10 Hours | 44,400 GPM |
| Turnover - 8 Hours | 35,520 GPM |
| Valve Included | 2" VariFlo |
