How to connect to wired network
How to set up your OmniLogic with your wired network?
Connect MSP to Home Router:
Configure Wired Connection:
1. Press "config"
2. Press the "config wizard"

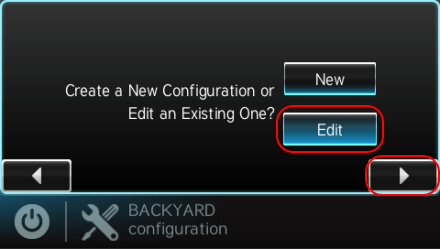

3. Press "Edit" then the right arrow
4. Press "System Options"

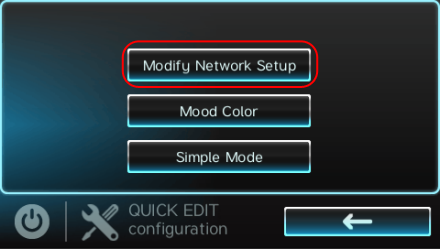

5. Press "Modify Network Setup"

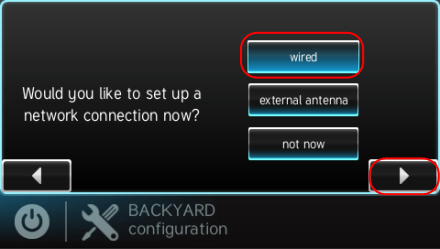

6. Press "wired" then the right arrow

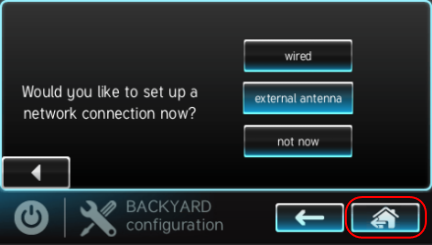

7. Touch the home icon

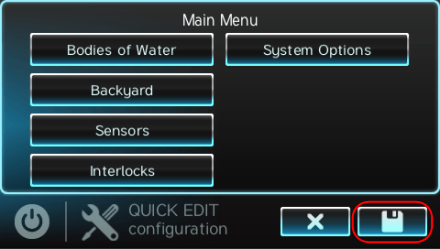

8. Touch the save icon
HLWLAN Network Setup

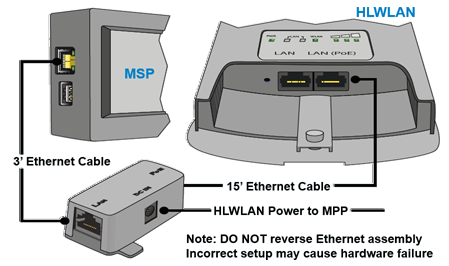

Connect HLWLAN Hardware to OmniLogic
Configure Wi-Fi Connection:
1. Press "config"
2. Enter the "config wizard"
3. Press "Edit" then the right arrow
4. Press "System Options"
5. Press "Modify Network Setup"

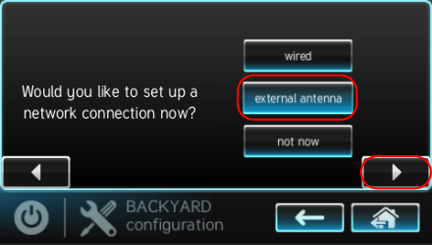

6. Press "external antenna" then the right arrow
7. Press the checkmark
8. Touch the home button
9. Touch save button

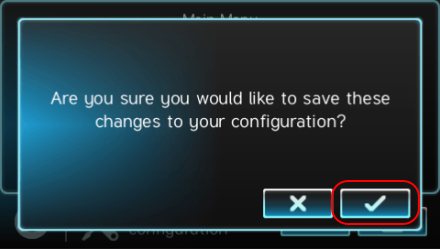

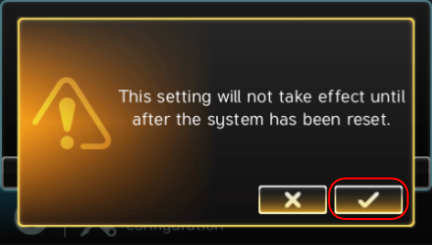

10. Press checkmark to save & reboot
Connecting to a Wi-Fi Connection:
1. Press "config"

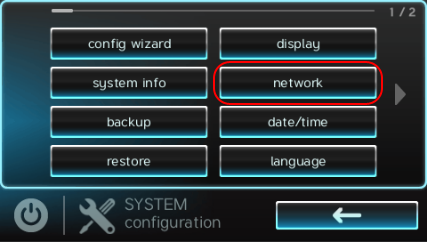

2. Press "network"
3. Press "setup wifi"

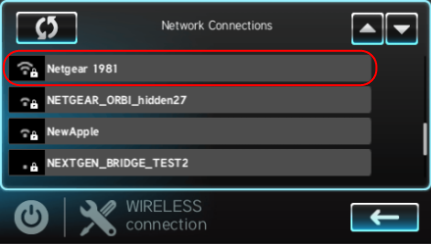

4. Select your Wi-Fi network
5. Press the checkmark

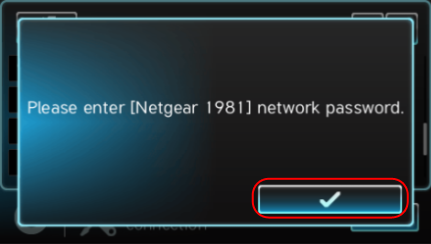

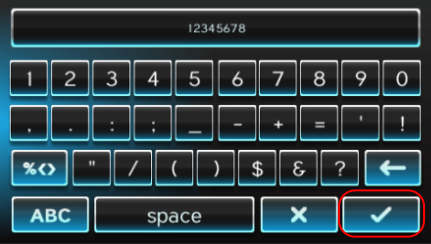

6. Enter your network password, then press the checkmark

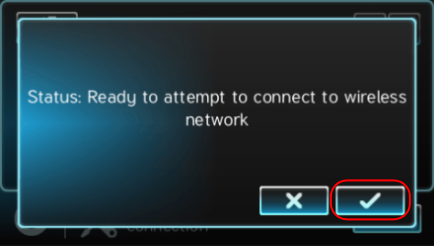

7. Press the checkmark

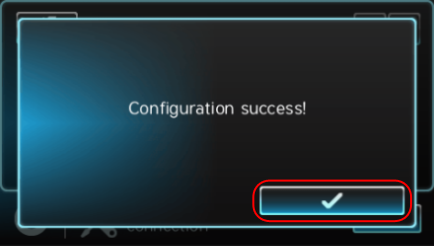

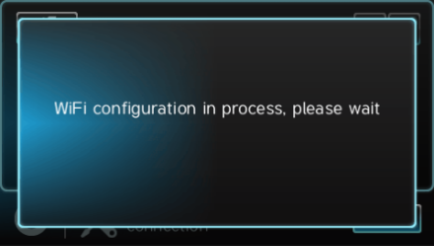

8. Configuration can take 5 minutes
9. Press the checkmark

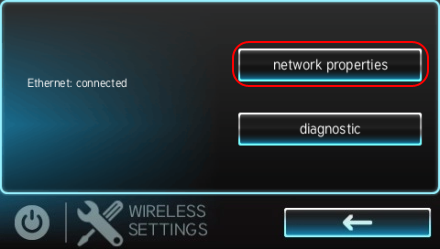

Verify IP Address and Connection
1. Press "config"
2. Press "network"
For Dynamic (DHCP) Network Setup
- Select "dynamic" on text bar (figure 4)
- Confirm and save with checkmark
Note: Network status (top left, figure 4) should be in "ON" position
4. Select "dynamic"

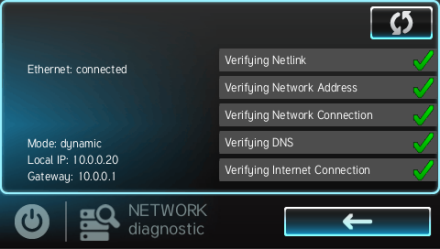

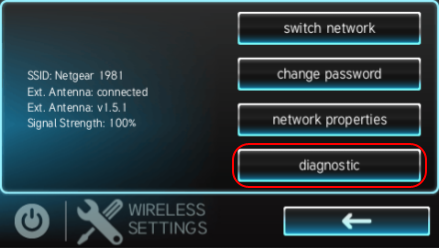

5. Press "diagnostic"
For Static Network Setup

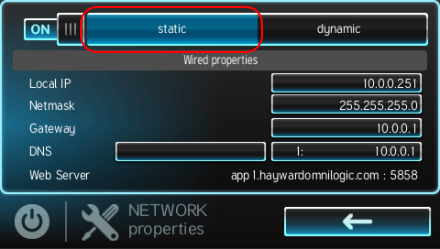

- Select "static" on text bar (figure 4)
- Confirm and save with checkmark
Note: Network status (top left, figure 4) should be in "ON" position
4. Select "Static"
5. Press "diagnostic"
