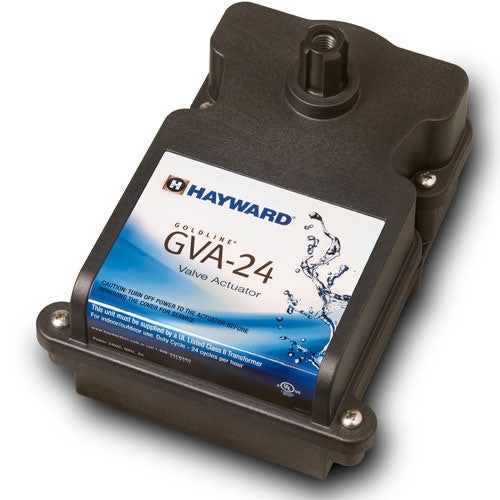

Name: GVA-24 Valve Actuator
SKU: GVA-24
Availability: InStock

Features

The industry standard configuration of the GVA-24 means that it is compatible with all major manufacturer’s valves and pool automation systems. The unique cam setting feature ensures a quick and easy installation with the precise control of water flow.

For the installers’ convenience, kits that combine the GVA-24 valve actuator with 3-port valves are available. For solar heating installations, solar kits are available that combine a valve actuator, 3-port valve, and temperature sensor.

Features and Benefits

Industry standard configuration, use with any valves
Operates 2-port or 3-port valves
Easy to adjust cams
Allows actuator to be in mounted in any position
Up to 180 degree rotation with 12.8 degree increments
Manual Switch
Mounted underneath actuator to minimize tampering
ON1-OFF-ON2
Allows manual rotation in the event of a power outage
Highest torque rating available
20-foot cable with industry standard plug
UL and CUL Listed

Application	New Construction
Brand	Hayward
Channel	Open Line
GTIN	761418002139
Warranty - Labor	None
Master Carton Qty	12
Pallet Qty	300
Warranty - Parts	1-year
Pool Type	In Ground
Series Automation	Valve Actuators

Questions & Answers

15 answered question(s)

Peter Vrana Verified User

06/24/26

Q: Should I set up valve actuator to number 1 or number 2. Thanks.

A:

Follow the installation instructions in the manual below. https://hayward.com/media/akeneo_connector/asset_files/0/9/092051B_RevE_fbb3.pdf

By Hayward Support

Kyle Verified User

06/24/26

Q: Does the actuator just fully open and close or can it be programmed to open halfway

A:

It is designed to fully open or close.

By Hayward Support

Jim Hill Verified User

06/24/26

Q: water is leaking out from the actuator. can i buy just the gasket and O ring. assuming that is the problem. during start up the valve stuck on a 2in. pipe above it thanks

A:

Hi, there are no replacement parts available for the GVA-24. We do not sell direct, but you can find a list of local Hayward Authorized Dealers by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

Ron F Verified User

06/24/26

Q: One of our actuators is not responding to commands from the control panel. Response to the toggle switch is still good. What are the troubleshooting steps to take? And if it turns out to be a faulty wire, can I order that from you? Thank you

A:

Hi, you can check to see if 24 volts are being supplied to the valve. We do not sell the cable separately. Hi, for help with this contact a local Hayward Authorized Service Center. You can find a list of them by clicking on the Dealer Locator tab on ...

By Hayward Support

Lori Verified User

06/24/26

Q: My actuator starts to open upon start up but then closes. What is the issue?

A:

Hi, give our Tech Support Group a call for help with this issue at 908-355-7995.

By Hayward Support

Matthew Tanner Verified User

06/24/26

Q: Water got in and seemed to corroded my capacitor wire. It broke into. Everything else seems OK. Can the capacitor be ordered? I'm having trouble finding one that similar.

A:

Hi, unfortunately there are no parts available for this product.

By Hayward Support

Alicia Frecker Verified User

06/24/26

Q: I have a gva24 that connects my pool pump to my solar pool heater. We turned off the heater over the winter. I went to turn it on but am unsure if the actuator is positioned correctly and my pool person says HD "doesn't want to be liable" in case he does it wrong. The pipe from the pump comes in from below and the two pipes up the wall go to the roof solar panels (water goes up one and down the other I assume). The gva24 is installed vertically and the handle os pointing directly right. The word closed is on the left side. So i assume it is open and ready to go? I can send a pic.

A:

Hi, someone from our Technical Service Department will contact you via email.

By Hayward Support

Jeremy Bessette Verified User

06/24/26

Q: Where can I get a replacement cable that goes from my OmniLogic panel to the Valve actuator itself?

A:

Hi, that cable is not available as a spare part.

By Hayward Support

Denise Verified User

06/24/26

Q: If my actuator has gone bad, do i need to purchase any other parts besides this? Does it come with the lever/handle?

A:

Hi, you would just need to replace the actuator. It does not come with the handle. That comes on the valve itself.

By Hayward Support

Mario Martinez Verified User

06/24/26

Q: Why is my spa draining?

A:

Hi, for help with this contact a local Hayward Authorized Service Center. You can find a list of them by clicking on the Dealer Locator tab on the home page of our website Hayward.com

By Hayward Support

Jesse G. Verified User

06/24/26

Q: Can the actuator be mounted vertically?

A:

Yes it can.

By Hayward Support

Richard Runnells Verified User

06/24/26

Q: Is there any maintenance needed or possible

A:

There is no maintenance or service needed on these valve actuators.

By Hayward Support

Therese Springs Verified User

06/24/26

Q: I need to replace my pool actuator S/N:C12JVALD2500 is this valve compatible if not what valve should I replace it with

A:

Hello, Someone from our technical team will contact you shortly.

By Hayward Support

Pierre Verified User

06/24/26

Q: Can the devise operate with a 24 VAC supply at 50 Hz, (which is the standard in Europe) ? Could you please confirm if this actuator is suitable for this frequency conditions or if any specific adaptation is required?

A:

Hi, the GVA-24 is only rated for use at 60Hz.

By Hayward Support

Shannon Holland Verified User

06/24/26

Q: The valve is closed but water is still getting to my roof solar system. Is there a service kit I can purchase to fix this?

A:

Hi, someone from our Technical Service Department will contact you via email.

By Hayward Support
